Arctic Cat Prowler 4" Portal Gear Lift

4" portal gear lift built for the Arctic Cat Prowler 500 HD and Arctic Cat Prowler 550 XT. It adds lift at the wheel hubs and puts the gear reduction in the hub, so you get ground clearance and extra torque without asking more of the drivetrain behind it. Choose a 15% or 30% gear reduction and cast or billet aluminum housings to set the kit up for the riding you do.

Features:

• Our housings are reinforced in all the right places
• They’re built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Available with billet or cast aluminum housing

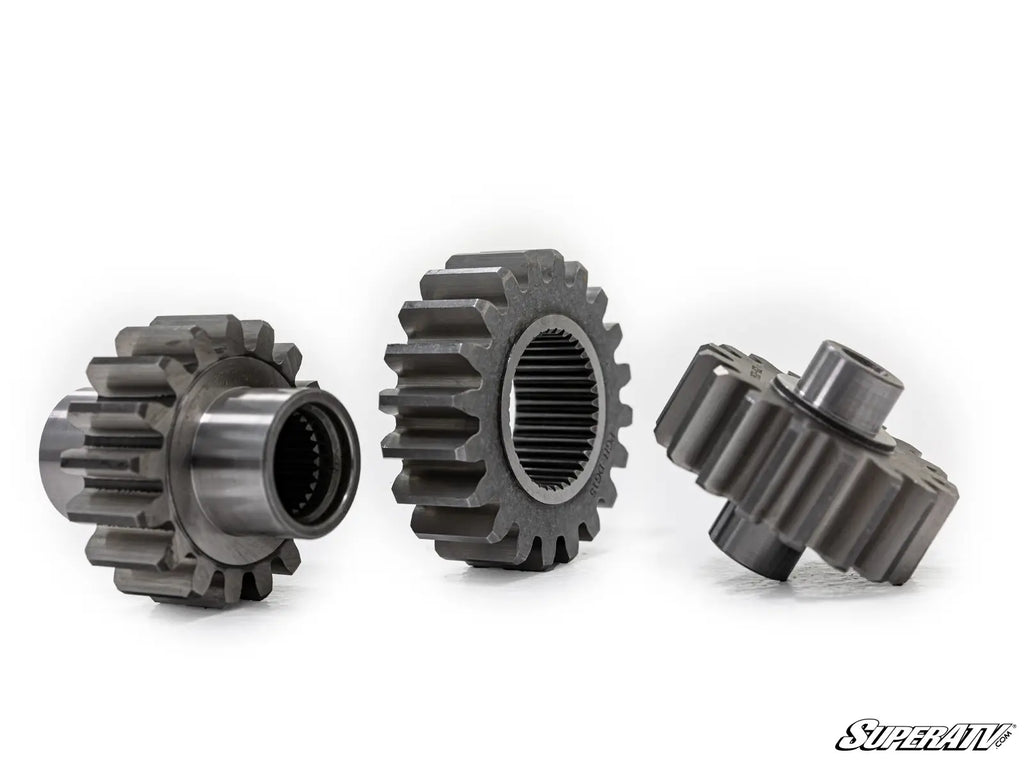

• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions

Fitment:

• Arctic Cat Prowler 500 HD : 2014-2015
• Arctic Cat Prowler 550 XT : 2010-2015
• Arctic Cat Prowler 700 XTX : 2010-2014
• Arctic Cat Prowler 700 HDX : 2012-2014
• Arctic Cat Prowler 700 HDX Crew : 2017
• Arctic Cat Prowler 700 XT : 2015-2017
• Arctic Cat Prowler 1000 XT : 2015-2017
• Arctic Cat Prowler 1000 XTZ : 2009-2014
• Arctic Cat Prowler 1000 H2 : 2011
• Arctic Cat Prowler 1000 XTZ : 2009-2014

Note: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.

Note: 14” or larger wheel required.

Note: Wheels cannot exceed 5” backspacing.

Note: Not compatible with dual beadlock wheels.
