POLARIS RZR 800 4" PORTAL GEAR LIFT

  • Sale
  • Regular price $3,249.95
Shipping calculated at checkout.

Snap Logo Lease for as low as $/week Learn More

Gen 3 Portals are Geared for All
SuperATV’s GDP 4” Portal Gear Lift for the Polaris RZR 800 is Geared for All. What do we mean by that? Our 4” portal lift is available with 15% or 30% gear reductions. You can get exactly what you need for the way you ride.

Perfect for Mud
Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still use it on the road and tear up trails and rocks.

Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.

Perfect for Trails
Get 4” portals and a 15% gear reduction on your Polaris RZR 800 and take on the trail less-traveled. You’ll keep that high speed and leave your friends in the dust when you hit a hill or washout. It’ll bring out your UTV’s full potential. 

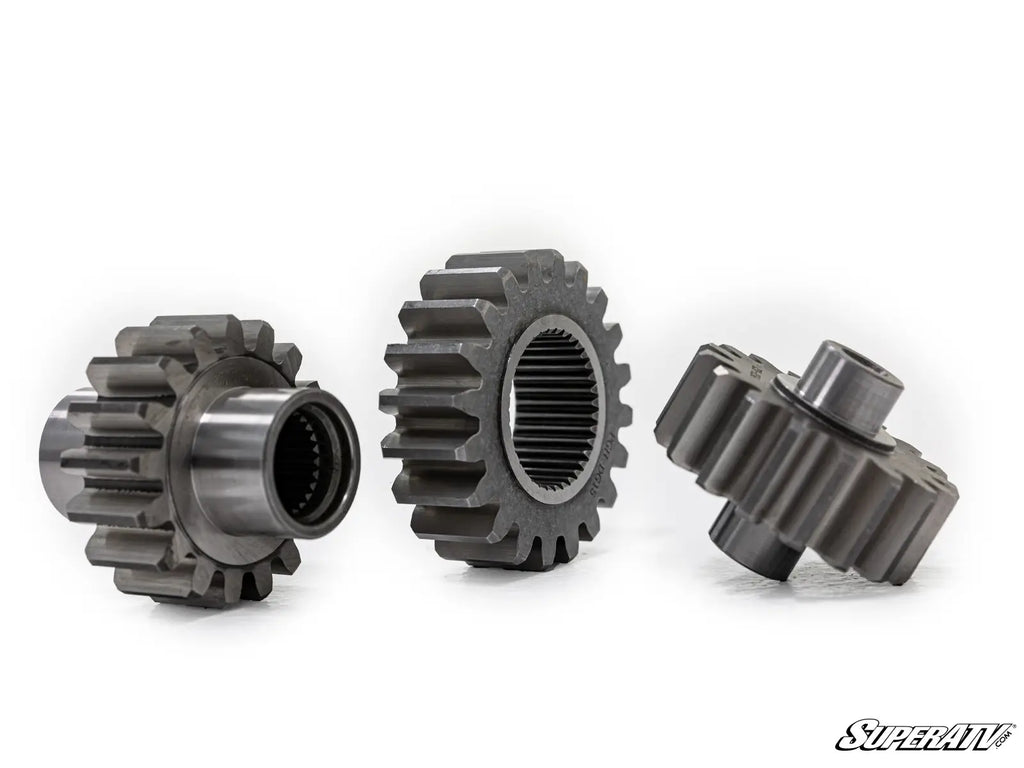

Better Gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

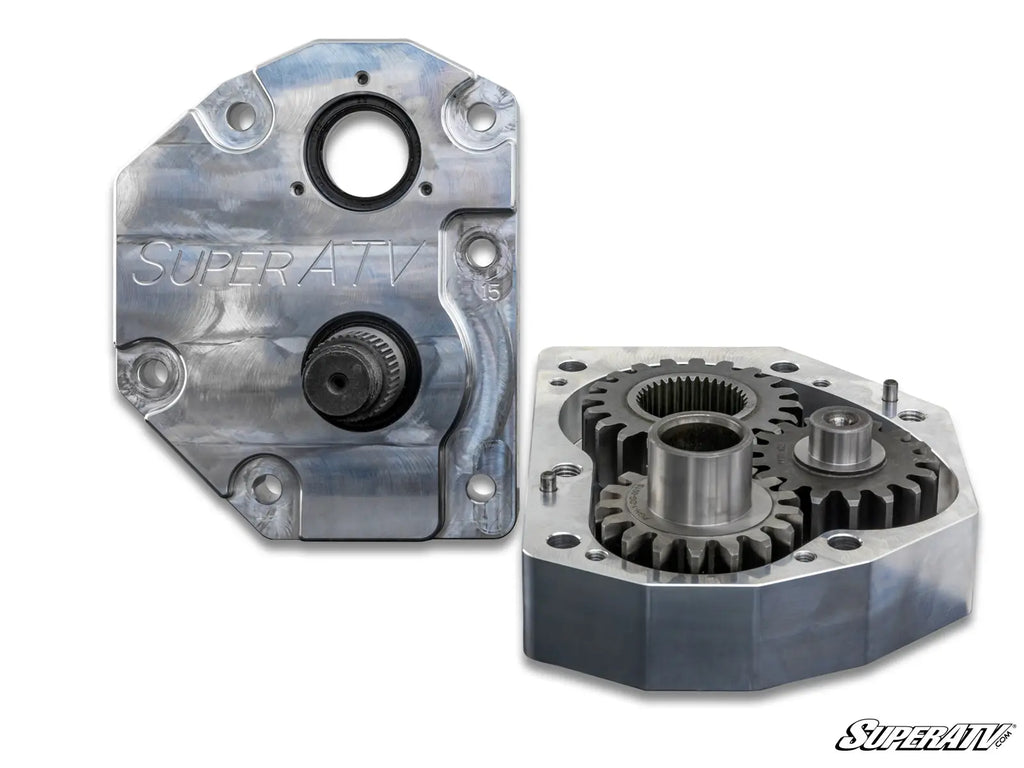

Stronger Housings by Design
Trust us when we say we’ve done our research. We’ve seen what makes housings fail—you know, those designs and materials that give off a “what not to do” vibe. And we do the opposite of that. Our housings are stronger, smarter, and more dependable by design. Whether you go with cast or our USA-made and CNC-machined 6061 billet aluminum, you’re getting portal housings that offer unmatched strength and reliability.

  • Our housings are reinforced in all the right places
  • They’re built with better oil flow and gearing forces in mind
  • There are no gimmicks and no vents because vents do more harm than good—we know because we tested them


Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

  • Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • A sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout so you can forget about oil leaks



Polaris RZR 800 Portal Gear Reduction Recommendations
Tire Size Required Suspension Setup with 4" Portals Recommended 4" Portal Gear Reduction
Up to 26" Stock 15%
Up to 26" 1.5-3" Lift Kit 15%
27" to 28" 5" Lift Kit 15%
29" 1.5" Forward Front A-Arms 15%
29" 1.5" Forward Front A-Arms and 1.5-3" Lift Kit 15%
30" to 31" 1.5" Forward Front A-Arms and 5" Lift Kit 15%
32" 6" Lift Kit 30%
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed.



WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.

Features

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brakes lines and instructions


Wheel Requirements:

  • 14” or larger wheel required
  • Wheels cannot exceed 5” backspacing
  • Not compatible with dual beadlock wheels

Fitment

  • Polaris RZR 800 : 2008-2014
  • Polaris RZR 4 800 : 2010-2014
  • Polaris RZR S 800 : 2009-2014

NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
